Tree diversity patterns along the latitudinal gradient in the northwestern Russia

Abstract

Background

One of the key forest characteristics is the biodiversity, particularly the diversity of trees which are forest ecosystem engineers. Nowadays the most worldwide common approach for assessment of forest conditions and dynamics is based on the systematic monitoring, performed at a set of regularly structured plots. To fulfill the existing gap in this sort of knowledge on the Russian forests, an extensive study of tree species diversity on a regular network was conducted in north-west of Russia.

Methods

The study used the ICP Forests monitoring network that spans over 1700 km along the western Russian border from forest-tundra in the north to broadleaved-coniferous forests in the south. Tree data were collected at 710 sites that were assigned along a regular grid. We performed series of statistical analyses of the tree species distribution and diversity in relation to environmental and anthropogenic factors.

Results

According to the Maxent species distribution modelling results only Pinus sylvestris, Betula sp. and Picea abies have the potential to grow throughout the study area. The locally maximum tree species diversity varies along the latitudinal gradient from 1 to 3 species in the north to 5–7 species in the south. Monocultural stands are relatively abundant across the study area, being especially common in the south taiga. The prevailing part of the monocultural stands is represented by Scots pine (72%). The age distribution of dominant trees has a clear connection with the intensity of forest use. We found that recent wildfire events had only little effect on tree diversity in the study area.

Conclusions

We demonstrated that ICP Forests monitoring network enables to successfully establish the main qualitative and quantitative relations of the spatial variation of tree species diversity to climatic, landscape, soil and anthropogenic factors. Analysis of the influence of these factors on tree species distribution allowed us to conclude that with the continuing trend of reducing the frequency and intensity of fires, Norway spruce will further replace Scots pine and Betula sp. in the north-western Russia. Extending the monitoring network, especially adding the time-series context, could provide novel appealing opportunities for forest dynamics projection and sustainable management.

Background

More than 20% of forests on the Earth are located in the Russian Federation with the total area of forests exceeding 800 million hectares (FAO 2015). Among them boreal forests are prevailing with proportion 86%. A credible estimate of the current forest condition and ongoing dynamics is a basis for reliable forecasts of the global changes and sustainable forest management. Nowadays the most worldwide common approach for assessment of forest conditions and dynamics is based on the systematic ground-based forest monitoring, performed at a set of regularly structured locations (Ferretti 2013; Crowther et al. 2015). In Europe, one of the most ambitious projects on forest description on a regular basis is the International Co-operative Programme on Assessment and Monitoring of Air Pollution Effects on Forests (ICP Forests).

One of the key forest characteristics is the biodiversity, particularly the diversity of woody plants which are forest ecosystem engineers (Jones et al. 1994; Jones et al. 1997). There is evidence of a positive relationship between the tree species diversity and ecosystem functioning (Gamfeldt et al. 2013). Recent studies have shown that ICP Forests data can be successfully used to assess tree diversity (Tröltzsch et al. 2009; Brus et al. 2012). In Russia the monitoring network ICP Forests spans over 1700 km along the western Russian border and covers six northwestern regions (Lukina et al. 2013). Just as everywhere else on our planet, Russian forests are generally shaped by a combination of various factors, which can be divided into four principal groups: historic, current abiotic, biotic and anthropogenic (Huston 1994). It is recognized that the modern differentiation of the tree species composition on a latitudinal gradient is determined primarily by climate (Sykes et al. 1996; Körner et al. 2016; Vetluzhskikh 2016), and for boreal and northern temperate European forests the most important factor is temperature (Morozova 2009). However, other factors acting on different spatial scales may have a significant impact on the local patterns of tree species richness (Caley and Schluter 1997; Svenning and Skov 2005; Svenning et al. 2010). While regional factors (climate and historical) determine the regional pool of species, at a local level other factors such as soil, biotic interactions, natural disturbances and anthropogenic influence may be important. As Caley and Schluter (1997) noted it is also possible “that in natural communities a variety of such processes could interact, resulting in a complex array of outcomes”. As several key fundamental studies in Russia indicated the crucial contribution of wildfires into structure and composition of forest communities (Molchanov 1934; Korchagin 1954), we specifically test the validity of this concept nowadays and pay increased attention to pyrogenic factor.

This study is aimed at assessment of tree species diversity patterns depending on combination of various natural and anthropogenic factors in Northwestern Russia.

The study addresses the following problems:

• 1) Assess the actual and potential distribution of tree species in Northwestern Russia and determine the key factors that are shaping the observed patterns.

• 2) Disentangle the impacts of climate and other environmental and anthropogenic factors that operate at different spatial scales on forest communities.

• 3) Evaluate relationships between stand age and intensity of forest use.

To answer these scientific questions we performed series of statistical analyses of the tree species distribution and diversity along the latitudinal gradient in Northwestern Russia based on the tree data collected within the ICP Forests monitoring programme. It is the first study on tree species diversity in the large area in European Russia, based on data from the regular grid.

Methods

Study area

The study region is located in the northwestern part of Russia (54°20′N, 19°50′E; 69°05′N, 37°45′E) and consists of 6 federal states: Leningrad, Pskov, Novgorod, Kaliningrad, Murmansk regions and Republic of Karelia. The terrain of this area was primarily shaped during the last glacial period. There is a clear latitudinal landscape zonation along the meridian gradient, from subarctic forest-tundra in the north to hemiboreal in the south (Fig. 1). The most highland areas are located in Murmansk region (the Khibiny Mountains) and northern part of Karelia and mainly feature dark-coniferous open forests. The lowest areas are represented by river valleys landscape and are generally situated in Kaliningrad region (The Ecological Atlas 2002). Apart of those the study area is generally dominated by boreal forest landscapes. Boreal north taiga and middle taiga forests typically occupy ridge-hilly moraines and sandy-lake plains, where crystalline hard rock surface formations are abundant. The border between north and middle taiga approximately follows the 63°N latitude. The north taiga is dominated by pine forests stands and the middle taiga by mixed stands of pine and spruce. Further to the south lies southern taiga landscape, which mainly span over the lowlands, moraine and lake-glacial flatlands. Many of the areas in that landscape are vast swampy sandurs. The forests in these areas are generally of secondary types (birch, aspen, grey alder). An exception is the Karelian Isthmus area, which is featured by rugged terrain, abundant hard rock outcrops and multiple lakes. Hemiboreal landscapes start approximately at the 58°N latitude and generally occupy the whole southern part of the study region. Mixed coniferous-broadleaf forests could be typically found in lake-glacial flatlands and lowlands that are crossed by periodic areas of ridge-hilly terrain. The prevailing forest species are spruce, pine, oak, maple, and birch. Black alder occupies the most moist lowlands.

Fig. 1

Spatial distribution of landscape types and dominant tree species over the study region. The map depicts the spatial distribution of landscape types over the study region through colorscheme. Boundaries of the landscape zones are provided by the Ecological Atlas of Russia (2002). The locations of sites, where the field observations were conducted are marked with symbols, which type reflect the dominant tree species for that site

The climate of the area varies from subarctic climate, with long and cold winters and short, cool summers, in the northernmost part to typical European continental influenced climate with warm, dry summers and fairly severe winters in the southernmost part. Similarly, the precipitation is latitudinally structured, with higher values in the south regions. The most precipitation typically fall during spring and autumn seasons. Table 1 features the key climatic characteristics for each of the bioclimatic division.

Table 1 Key climatic characteristics for each of the major bioclimatic divisions represented in the study area

Field data collection

The study area has been a subject to the ICP Forest Programme, in scope of which a network of grid structured sites was monitored. It features 710 sites in total with 16,351 individual trees inventoried Additional file 1: Table S1. The grid is rectangular and spaced by 16 km in Leningrad and Kaliningrad regions and by 32 km in other regions (Fig. 1). The exact locations of sites were determined using the mobile Global Positioning System (GPS) device according to theoretically calculated coordinates. A deviation of exact site position up to 500 m from the theoretical coordinates was allowed in order to minimize potential issues for forest monitoring exactly in the theoretical location. The theoretical site was deprecated and observations not made in case of a) no forest stand with area of at least 0.5 ha was found in the range of acceptable deviation from the theoretical coordinates, or b) the age of dominant forest stand was less than 20 years.

At each site 4 sampling plots were established, each located at 25-m step away from the site center along one of the four cardinal directions. Each of the plots was circularly shaped with the radius determined by particular local forest stand: it was selected in such a manner that each plot contained 6 trees of the dominant species. Only those trees that belong to 1–3 Kraft classes were counted (Eitingen 1959; Assmann 1970). Thus, the total number of dominant trees in all 4 plots at each site was always equal to 24. Apart of those dominant species trees, all trees of other species (also belonging to 1–3 Kraft class) within the determined plots were recorded. In the case when the dominant species trees were particularly remotely located and the established sampling plots overlapped, the 25-m step from the center of site was replaced by 50-m (or 75-m) step and the same plot establishing procedure was repeated. For each counted tree we recorded diameter, height, age and crown characteristics. Along with these we recorded plot fundamental properties: site’s ecotope, slope exposition and local relief characteristics.

In this study we use the subset of the whole database consisting of those 547 sites, which were monitored in 2009 (Murmansk region) or 2008 (other regions).

Wildfire activity

The raw data on wildfire activity was obtained through Vega satellite imaging service using spectra-radiometric observations in 2006–2016 by MODIS sensor, mounted on TERRA and AQUA satellites (Lupian et al. 2014). The data features the coordinates of initial ignition, encounter date and spread area. For each of ICP Forests sites we selected the recorded fires that took place within the 3-km radius circle centered at the site. We calculated the amount of fire events and burnt area within the 3-km circle. We similarly calculated the proportions of square area that was disturbed by fire in 2006–2016 for each landscape.

Statistical analysis

We exploited various descriptive analyses to visualize and assess the patterns of community diversity and composition in relation to environmental factors, land type, fire stress and the age of dominant tree. To accommodate for potential nonlinearities in the relationships between different variables we always used Spearman rank coefficient as a measure of correlation. All descriptive analysis was run using the core R software (R Core Development Team 2016).

We analyzed the distributions of individual species using the maximum entropy method (Phillips et al. 2006; Phillips and Dudík 2008) using MaxEnt software (version 3.3.3 k). Through this approach we related the observed patterns of species presences and absences to the various environmental covariates, that previously were found relevant for species distribution modelling in other studies (Hunter 2012). Namely we used WorldClim 30-s database (WorldClim, www.worldclim.org) to obtain high resolution estimates (Hijmans et al. 2005) for the key bioclimatic variables (BIO1-BIO19, WorldClim notation, see list of abbreviations) and additionally included altitude. We used the fitted models to produce the species optimal distribution maps for the species that were abundant in the study area.

We further analyzed the species-to-species associations, explicitly accounting for the spatial structure of observed plots over the study region, with the HMSC – Hierarchical Model of Species Communities (Warton et al. 2015; Ovaskainen et al. 2016; Ovaskainen et al. 2017). This approach differs from the single species distribution modelling in that it attempts to seek strong patterns that are shaping groups of species in the observed communities simultaneously, thus sharing information between species, which is supposed to be especially beneficial in sense of statistical power for making inference on rare species’ that do not exhibit sufficient signal on their own. We included only intercept to the fixed effects part of HMSC and a single spatial level of random effects, corresponding to the locations of the observed data, with the number of latent factors assumed to be estimated by the model from the data itself. With this modelling design we evaluated the spatially structured random factors that are shaping the observed communities with the amount of variation that they explained, measured as Tjur R ², and the species-to-species cooccurrence matrix that provides information on which species are present together more or less often than expected under the independence hypothesis (Pollock et al. 2014).

Results

Table 2 gives the correlation analysis results for the proportions of number of certain species’ trees observed at a site to the total number of recorded trees in this site and the key characteristics of the site: biodiversity, dominant forest stand age, soil fertility, moisture, and pyrogenic activity. The highest negative correlation was observed between the proportion of pine and soil fertility. Oppositely the birch was found to be positively correlated with soil fertility. The strength of species-moisture correlation was generally lower with the greatest negative correlation exhibited by spruce. Biodiversity was found to be positively correlated to soil fertility and generally negatively correlated to moisture. Pine is usually associated with narrow diversity, while proportions of spruce and birch oppositely exhibit positive correlation. The proportions of pine and spruce, as well as pine and birch showed strong negative correlation, although this could be partially attributed to specifics of sampling design. Our analysis showed that the correlations of species proportions to pyrogenic activity was generally rather low, the pine negatively correlated with measures of pyrogenic disturbance and broadleaf positively correlated.

Table 2 Spearman rank correlations between proportions of tree species in the plot, biodiversity, stand age, two habitat properties: soil fertility and moisture, and pyrogenic activity recorded as number of fires and burnt area

According to the Maxent species distribution modelling results only 3 of the observed species (Picea abies, Pinus sylvestris, Betula sp.) are not theoretically restricted in their distribution due to climatic conditions over the study area (Fig. 2). The most influential factors for Pinus sylvestris distribution revealed to be the temperature characteristics: mean Diurnal range (BIO2), temperature seasonality (BIO4) and max temperature of warmest month (BIO5). Betula sp. and Picea abies also were found to be strongly dependent on these factors, but also considerably influenced by the precipitations seasonality (BIO15). The optimal distribution ranges for Alnus incana and Alnus glutinosa completely overlap with the northern border at 61°N, and these species revealed to be most sensitive to the altitude and the precipitation of driest quarter (BIO17). Distribution of Populus tremula is concentrated in the southern regions of the study area. Our modelling results depict that it is most influenced due to BIO4, BIO5 and BIO17. It is also worth to mention that according to Maxent results potential distribution range of Populus tremula spans so far north as the Kola Peninsula, which considerably deviates from its observed distribution range.

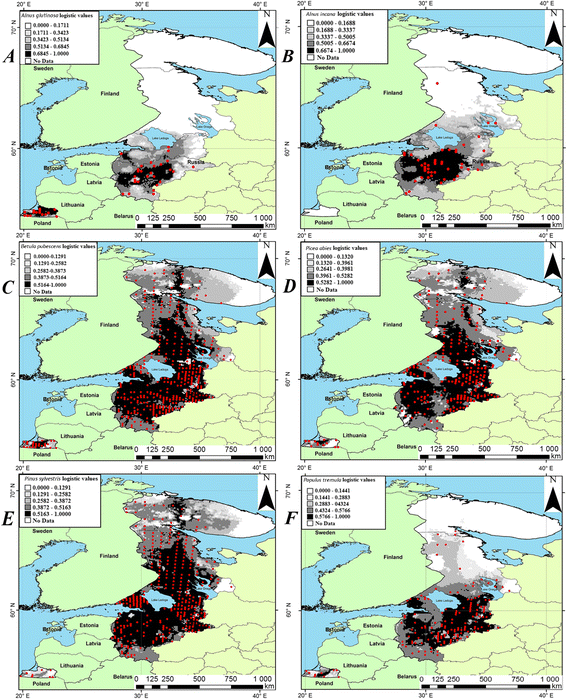

Fig. 2

MaxEnt-based potential species distributions. The maps in panels depict the potential individual species distributions estimated using MaxEnt approach. The grayscale shading depicts the occurrence probability of considered species in given area for sampling with similar effort. Darker colors depict higher occurrence probabilities. Red circles visualize the monitoring network sites, where the species was present

The maximum tree diversity of studied forest communities had a distinguished latitudinal structure varying from typical 1–3 species encountered in the north taiga sites to 5 (occasionally 7) species encountered in south taiga and hemiboreal sites (Fig. 3a). However, the mono-species communities were rather abundant in all bioclimatic zones, with the highest proportion of mono-species communities observed in south taiga. Among the mono-species communities 72% were pine forests and 12% birch forests. Especially prevailing part of mono-species pine forests was detected in sandur parts of south taiga and lake-glacial sandy landscapes in hemiboreal zone. Rich species communities mainly consisted of spruce and broadleaf species, although spruce was not particularly associated with rich communities. These patterns revealed by descriptive analysis were further supported by the results of joint species distribution modelling, which indicated positive associations within several groups of broadleaf species and negative associations of most species with pine (Fig. 4). The HMSC estimated that there are three statistically significant latent factors, two of which were found to be spatially structured with non-zero spatial ranges (40–70 km). The averaged over species Tjur R ² was 0.34, although it significantly varied for individual species (Table 3). The third latent factor was primarily associated with increased occurrence probability of Pinus sylvestris and decreased probability to encounter any other species in the same plot. The remaining two latent factors could not be easily attributed to single species, the first latent factor seems to be associated with divisions of tree species into nemoral and boreal groups.

Fig. 3

Spatial distributions of tree biodiversity, tree stand age and wildfires. Panel a visualizes the tree species biodiversity at sampled monitoring network sites. Panel b depicts the maximum age of dominant species in the stand at sampled sites. Panel c demonstrates the wildfire ignition locations for the years 2006–2016

Fig. 4

Species-to-species association matrix, estimated by Hierarchical Model of Species Communities. Each matrix cell corresponds to a pair of different species and gradation of blue-red colors depict the species-to-species estimated association strength measured at correlation scale. Red colors stand for the species that cooccur more often than expected based on the individual species’ occurrence probabilities. Contrary, blue colors depict the species that tend not to cooccur. White cells indicate those pairs, where the null hypothesis of no association between given pair of species could not be rejected at the statistical significance level 0.05

Table 3 Latent loadings for the HMSC and model’s explanatory power measured as Tjur R ²

The spatial distribution dominant tree ages was highly uneven (Fig. 3b). The northern areas were generally represented by highly mature forests (>160 years) with the most aged trees (300–330 years) being pines or spruces observed in the north taiga. Further to the south the proportion of the forest stands of age 80–120 years increases. However, while in the Karelian Isthmus this age group is vastly prevailing, Karelian middle taiga features more heterogeneous age distribution mainly represented by middle age stands (40–80 years) with occasional more mature stands (120–160 years). More southern regions of Pskov, Novgorod and Kaliningrad generally covered by middle age forests while the mature stands (>120 years) are rare.

Discussion

First of all it is worth noting that ICP Forests data have some limitations when used for analysis of tree species diversity (Tröltzsch et al. 2009). The plot density 16 km × 16 km to 32 km × 32 km provides only for coarse estimation of current species distribution at the regional level. Furthermore the ICP Forests plot network includes not all trees with stems exceeding a certain diameter but those related to 1–3 Kraft’s classes. Also plot areas may be not sufficient for adequately measure tree species diversity (Latham and Ricklefs 1993). However in general ICP Forests plot data are considered to be representative at the regional level and there is positive experience of their use for biodiversity assessment (Tröltzsch et al. 2009; Meier et al. 2012). Finally, as it was already mentioned, for a large area in Northwest Russia these data are the only available for analysis with regular survey grid.

Extremely low tree diversity is characteristic of all Eurasian boreal forest (Wirth 2005). But woody flora of temperate European forests is significantly less diverse than flora of forests in the North America and especially in East Asia at the similar latitude range. That is usually explained by massive extinction in the Pleistocene ice ages (Huntley 1993; Latham and Ricklefs 1993; Svenning et al. 2008).

Our data clearly demonstrated the latitudinal gradient of tree species diversity – with 6 species encountered in the northern and middle taiga, 8 species in the southern taiga, and 15 in hemiboreal subzone. The highest diversity is observed in the Kaliningrad region – the most south and that is also important, the most western region in this study. It is the only region where temperate Central European tree species have been presented, e.g. Carpinus betulus and Acer pseudoplatanus. The northern limits of species distribution are generally associated with duration of growing season, while the eastern limits – with temperatures of the coldest month (Woodward and Williams 1987; Sykes et al. 1996).

Climate regulates tree species composition at the regional level; however, at the local level site-specific factors (e.g. forest fires, wind throw, topography, soil characteristics, interspecific competition and successional stage) mostly overrule the importance of regional climate (Pearson and Dawson 2003; Körner et al. 2016; Kuosmanen et al. 2016).

For example widespread distribution of monocultural pine forests in the study area could be associated with poor soils, anthropogenic influence and early stage of successions. As it was demonstrated for the area of Les Landes, SW France (Sykes et al. 1996), most of the moisture-demanding tree species were absent from the sandy soils. Slash-and-burn cultivation practices with shorter fire return intervals and agricultural deforestation also caused change towards monocultural forest structure (Kuosmanen et al. 2016).

Our results of modelling the potential distribution of tree species could be explained by ecological characteristics of these species. For example, the distribution of mesofilic species (Betula sp. and Picea abies) was limited to the areas with moist soil during the growing season – in contrast to xerofilous species Pinus sylvestris, which can successfully tolerate long-term moisture deficit. The altitudinal dependence of Alnus incana and Alnus glutinosa distribution could be attributed to these species’ preference to moist floodplains. Higher altitude results in faster soil drainage, leading to suboptimal habitats and consequently lower occurrence probabilities. The relation between tree species distribution and habitat type fall in line with both MaxEnt modelling results and previous findings on pine forest being associated to poor oligotrophic soils and spruce preferences to over-moist soils (Yurkovskaya 2014).

Notably however, our results exhibited huge deviation between actual and estimated potential distribution area of aspen, with the MaxEnt model suggesting that it could be encountered so far north as the Kola Peninsula. Aspen is a mesophilic and mesotrophic species, prefers moist, rich soil and rarely could be encountered on dry sandy or swampy soils (Mikhailov 1985). In Northwestern Russia sandy soil and swampy areas that are unsuitable to well sustain growth of aspen, are common. Thus, the low occurrence rates of aspen on its northern border could be attributed to suboptimal habitats. Aspen occurrence on the Kola Peninsula could be related to habitats with rich and moist soils, for example, in the Khibiny Mountains (Mishkin 1953).

Results obtained with HMSC simulation revealed fundamental differences between temperate and boreal tree species. Not going into further details we note that historically these groups of species exhibited different behavior. Recent research show that during glacial period boreal tree species were wide spread in Central and Eastern Europe, including the Russian Plain, while temperate species were preserved in small refugia restricted to the Mediterranean and Black Sea regions (Svenning et al. 2008).

The spatial distribution of dominant tree ages was decently maps to forest use intensity over the study area. As the clearcutting in Karelia started only around 1930 (Gromtsev 2003, 2015; Volkov 2008) due to lack of infrastructure and low population density, these territories still keep very mature forest stands, which age significantly exceeds the assigned cutting age. The proportion of mostly intact natural forest landscapes in North Russia is estimated by 13% (Yaroshenko et al. 2001). On the contrary, forestry has been much more intensive in the southern regions for already several hundred years and that lead to lowered tree stand ages and substantial transition to secondary forests (Angelstam and Kuuluvainen 2004; Gromtsev 2015; Rautiainen et al. 2016). For Fennoscandia the similar consistent pattern was observed (Kuosmanen et al. 2016), although forests in Russia still remain their natural features.

Over many ages, the pyrogenic factor was governing the forest forming processes in the boreal zone (Drobyshev et al. 2015; Kuosmanen et al. 2016). Sustenance of pine stands in north and middle taiga is related to periodic stand replacing wildfires, which occur several times per millennium (Molchanov 1934; Korchagin 1954; Gromtsev 2002). While the crown fires create preferable habitats for pine and birch colonization, spruce is completely intolerant even to ground fires (Korchagin 1954). Thus, the fire caused death of mature trees, as well as spruce and birch offspring and the remained pine restored dominantly over the burnt area. But nowadays, the wildfire density is higher in the southern regions, where secondary deciduous and coniferous-broadleaf forests are encountered more often (Fig. 3c). Moreover, the lower density of fires in the north taiga, compared to the middle taiga, is due to shorter fire danger season and increased proportion of swampy areas (Drobyshev et al. 2014).

Nowadays, contribution of wildfire into forest shaping is gradually decreasing in the study area. For example, in Karelia the mean single burnt area decreased several times over few last decades despite of approximately constant amount of ignitions (Gromtsev 2008). Our analysis of satellite data over 2006–2016 confirms that the amount of fire events and burnt area are decreasing over the last decade. Several authors relate this phenomenon to climate change: recently the amount of heavy rainfalls (>10 mm) in this area has significantly increased (Filatov et al. 2012). In 1995–2010 the number of heavy rainy days was considerably higher than could be expected from long-term observations. As the heavy rainfalls often stop the fire spreading, we can hypothesize that increased precipitation amount could be the reason for decrease in significance of fire in forest forming processes.

In many parts of the study area the major changes in forest composition occurred during last several decades. In Karelia the area of pine forest was decreased by 36%, the area of deciduous forests was increased more than 2.5 times, and the area of spruce forests remained unchanged (Gromtsev 2003). At the same time in the Karelian Isthmus the area of pine forests decreased by 13% in the period of 1923–1983, while the area of spruce forest increased by similar proportion (Fedorchuk et al. 2005). The optimal distribution area for pine, spruce and birch completely overlap, and with the continuing trend of reducing the frequency and intensity of fires, it is reasonably hypothesized that spruce will further replace pine and birch in these regions.

Conclusions

Local biodiversity of tree species in Northwestern Russia is determined by a set of environmental and anthropogenic factors. The north taiga is distinguished for its lowest biodiversity with no more than 3 tree species being observed at same location. On the opposite edge of the latitudinal range lie the areas with highest biodiversity, caused by high proportion of broadleaf species in community compositions. Monocultural stands could be found through the whole study area, being typically represented by pine and corresponding mainly to sandur and lake-glacial landscapes as well as sandy soils.

We have demonstrated that ICP Forests monitoring network enables to successfully establish the main qualitative and quantitative relationships of the spatial variation of tree diversity with respect to climatic, landscape, soil and anthropogenic disturbance factors. However, obtaining robust inference of the ongoing dynamics is problematic given that we have observed only a “snapshot” of the dynamic ecosystem. We believe that in order to resolve this issue, the considered data has to be of spatial time-series nature, which requires regular recensus of sites in the monitoring network.
