A multi-purpose National Forest Inventory in Bangladesh: design, operationalisation and key results

Abstract

Background

National forest inventory and forest monitoring systems are more important than ever considering continued global degradation of trees and forests. These systems are especially important in a country like Bangladesh, which is characterised by a large population density, climate change vulnerability and dependence on natural resources. With the aim of supporting the Government’s actions towards sustainable forest management through reliable information, the Bangladesh Forest Inventory (BFI) was designed and implemented through three components: biophysical inventory, socio-economic survey and remote sensing-based land cover mapping. This article documents the approach undertaken by the Forest Department under the Ministry of Environment, Forests and Climate Change to establish the BFI as a multipurpose, efficient, accurate and replicable national forest assessment. The design, operationalization and some key results of the process are presented.

Methods

The BFI takes advantage of the latest and most well-accepted technological and methodological approaches. Importantly, it was designed through a collaborative process which drew from the experience and knowledge of multiple national and international entities. Overall, 1781 field plots were visited, 6400 households were surveyed, and a national land cover map for the year 2015 was produced. Innovative technological enhancements include a semi-automated segmentation approach for developing the wall-to-wall land cover map, an object-based national land characterisation system, consistent estimates between sample-based and mapped land cover areas, use of mobile apps for tree species identification and data collection, and use of differential global positioning system for referencing plot centres.

Results

Seven criteria, and multiple associated indicators, were developed for monitoring progress towards sustainable forest management goals, informing management decisions, and national and international reporting needs. A wide range of biophysical and socioeconomic data were collected, and in some cases integrated, for estimating the indicators.

Conclusions

The BFI is a new information source tool for helping guide Bangladesh towards a sustainable future. Reliable information on the status of tree and forest resources, as well as land use, empowers evidence-based decision making across multiple stakeholders and at different levels for protecting natural resources. The integrated socio-economic data collected provides information about the interactions between people and their tree and forest resources, and the valuation of ecosystem services. The BFI is designed to be a permanent assessment of these resources, and future data collection will enable monitoring of trends against the current baseline. However, additional institutional support as well as continuation of collaboration among national partners is crucial for sustaining the BFI process in future.

Background

Forest resource monitoring has long been applied for managing natural resources and is perhaps more important now than ever. Over the past 25 years, the world’s forest area continues to decline, with a net loss of some 129 million ha (FAO 2015a). Although the annual rate of deforestation has slowed during the period 2010–2015, land resources are increasingly being degraded and the need for quantitative and spatial information has increased (Dubovyk 2017).

The Sustainable Development Goals (SDG) (UN 2015), as well as multilateral environmental agreements, recognize forests as key ecosystems for the sustainability of our societies. The role of trees and forests is increasingly recognized for the multiple services they provide. However, the capacity to collect, compile and analyse data, and to generate and disseminate forest related information needs strengthening in many countries (FAO 2017).

National forest inventories (NFI) are crucial for national forest monitoring (FAO 2015b) and are used to report to international frameworks, such as FAO’s Forest Resources Assessment (FRA). Contributions to the FRA have increased, with 45 countries reporting forest estimates from NFIs in 2010 (FAO 2010) to 112 in 2015 (FAO 2015a). NFIs and national forest monitoring systems are continually evolving to improve precision and accuracy of estimates and, more recently, to consider policy needs (Kleinn 2017). Political and socioeconomic settings for policy decision-making about forests are complex and characterised by growing user demands and efforts to produce data that are not only technically reliable and cost-efficient but also relevant to and accessible by stakeholders (Arnold et al. 2014).

Bangladesh is a deltaic country with one of the largest population densities in the world (1253 people per km²). The current estimate of 163 million people is expected to grow to 192 million by 2050 (UNDESA 2019). Despite socio-economic and environmental challenges, in 2015, the country became a lower-middle income country and aspires to become an upper-middle income country by 2021 (GED 2018). However, the growing demands for food, energy, and timber put tremendous pressure on the remaining forests. While most of the deforestation happened in the semi-evergreen hill forests of the Chittagong region (Dhali 2008; Reddy et al. 2016), all forests, including the Sundarbans (the world’s largest contiguous mangrove forest) and the coastal plantations, in particular the planted mangroves, are under pressure (Uddin et al. 2019). In addition, Bangladesh is one of the most vulnerable countries to climate change (Hasnat et al. 2018; Mojid 2020). Increasing income inequality and vulnerability of the poor to shocks such as those from natural disasters, and environmental degradation and unsustainable use of the remaining natural resources are major areas of concern. These may undermine its recent gains and future development trajectory.

Multiple forest inventories have been conducted in Bangladesh for different purposes and at various geographic scales. The impetus for conducting a forest inventory evolved over time, historically focusing on quantifying the timber resource, often for a specific purpose such as to service pulp mills (Forestal 1960), to more multipurpose inventories (Iftekhar and Saenger 2008). As the Government’s focus changed to producing accurate forest information at the national scale, the first national forest and tree resource assessment was carried out in Bangladesh during 2005 to 2007 (FD, FAO, 2007). The 2007 inventory successfully provided national estimates of forest resources, however, its usefulness for monitoring tree and forest resources was limited because of the difficulty in re-locating the field inventory plots, and the limited documentation of the previous field data collection process (Costello et al. 2016). In addition, there was generally a lack of awareness of the data generated, limited access to the data, and insufficient information on key forest types such as Sal (Shorea robusta) and coastal forests. In summary, as in other countries, the usefulness of inventories prior to the current study in Bangladesh has been limited because of inconsistent methods, unclear data sharing structures, lack of skilled human resources, lack of access to technologies, and insufficient financial capacities. Yet, forestry information remains a high priority for Bangladesh as is recognized in key national plans and strategies such as SDG’s (GED 2018), seventh 5 Year plan (GED 2015), Country Investment Plan for Environment, Forests and Climate Change sectors (GoB 2017a), the Reducing Emissions from Deforestation and Forest Degradation (REDD+) mechanism (MoEFCC 2018), the country’s forest investment plan (MoEFCC 2018) and the Bangladesh Forestry Master plan 2017–2036 (FD 2016a). In the light of these plans, the Government is currently setting targets to enhance forest area, increase the area of tree-covered land and increase the proportion of important sites for terrestrial and freshwater biodiversity by 2030 (GoB 2020a). Consequently, to meet the increasing need for tree and forest resource information, an institutionalised national forest inventory, which combines biophysical, land-use, and socio-economic data collected from the field and by remote sensing was envisioned in 2015 and implemented from 2016 to 2019. The aim of this article is to present the Bangladesh Forest Inventory, the centrepiece of the Forest Department’s national forest monitoring system, including its design and operationalisation process and key results.

Methods

Bangladesh Forest inventory design process

The design of the Bangladesh Forest Inventory was prepared through a stepwise and consultative process. This included the development of a specific set of objectives and a process of identification of criteria, indicators and variable selection using the Design Tool for Inventory and Monitoring (Scott et al. 2009). Criteria and indicators are the means for monitoring the achievements or progress towards sustainable forest management (Julve Larrubia et al. 2017). Seven criteria and 47 indicators (Fig. 1) were identified for organising the BFI results along with other available data and information taking into consideration the need for the BFI to contribute to national and international reporting requirements as well as policy makers’ data needs (GoB 2017b).

Fig. 1

Visualization of the relationships of data from multiple sources for multiple purposes in the BFI process. The numbering corresponds to the number of indicators in each criterion (modified from GoB, 2020a, b)

The wide ranging data needed for informing the criteria, indicators, and variables were collected across the country through sample plots for the biophysical data, sample households for the socio-economic data and using remote sensing for the land use and land cover mapping through collaborative efforts of different expert agencies (GoB 2020b).

Integration

An integrated approach considering both natural and social sciences (Zeng et al. 2015; Tewari 2016; Mensah and Casadevall 2019) is required for sustainable natural resource management through development of common indicators as they are interrelated and interdependent (De Lange et al. 2010). Three components (field inventory, remote sensing-based land cover analysis, and socio-economic survey) are integrated in the BFI to better inform decision-making to manage the interactions between people and natural resources for sustainable forest management. Particular attention was put into the sampling design of the socio-economic survey for the integration between the socio-economic and biophysical components.

The biophysical NFI design process

The design of the BFI is stratified random sampling with zones serving as strata, using quasi-systematic sampling within strata. The number of plots within each stratum was optimized to achieve minimum cost while also meeting national precision requirements for each of the key attributes of interest to be between ±5% to ±10% of the attribute mean at the 90% confidence level. This was achieved iteratively by using the Forest Resource Inventory, Edit and Design (FRIED) tool (Scott 1993) and following the process and inputs as described below.

Stratification

Five specific zones, which capture major differences in vegetation, soils, climate and land use, were used for stratification. The strata (or zones) afford the opportunity to use different sampling intensities to improve overall precision and to simplify estimation of change over time. The five zones are Sal (small forest areas dominated by Shorea robusta trees and mostly nonforest), Sundarban (dominated by mangrove tree species), Hill (hilly areas dominated by Dipterocarpus spp., Swietenia mahagoni, Tectona grandis, and others), Coastal (dominated by Sonneratia apetala, Avicennia officinalis, and Excoecaria agallocha), and Village (all areas not occupied by the other zones with no trees or mainly planted trees) (Fig. 2).

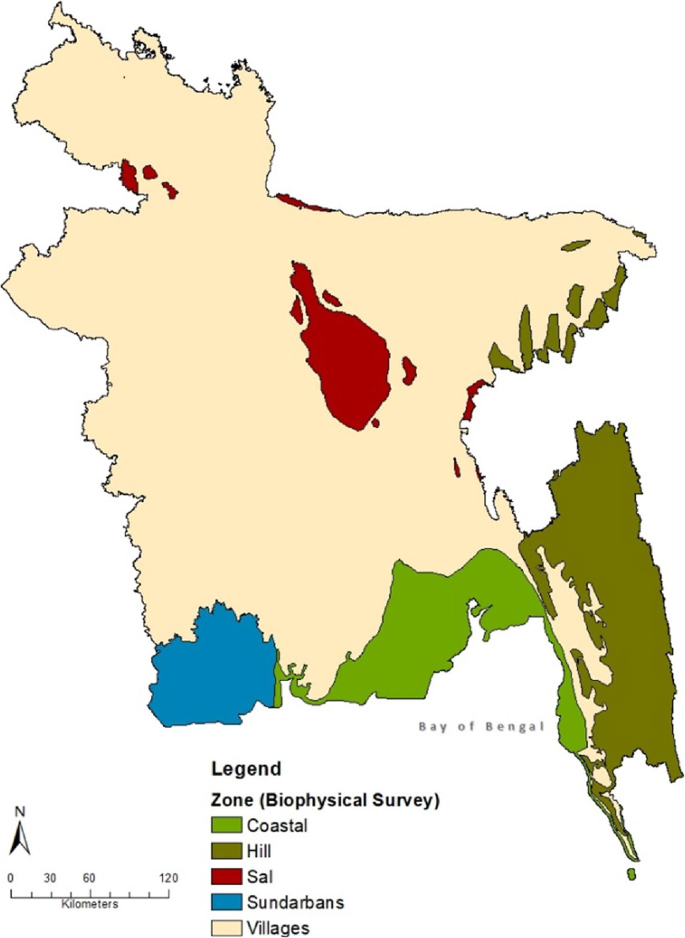

Fig. 2

Zones for the biophysical component of the Bangladesh Forest Inventory

Cost assessment

Costs included on-plot costs (time and materials) and off-plot costs (travel, equipment, supervision and lab analysis). The estimated costs of each potential design combination were based on costs depending on the plot configuration, the number of plots, distances between plots, and accessibility within each zone.

The cost for transportation was calculated considering an average distance between field offices and any location in the zone, and the average transport cost within each zone (Fig. 3), and assuming that one plot is measured in 1 day and that the field team spent an average of 15 days in the field at a time for all zones except the coastal zones where field teams must go back to the duty station after each field visit.

Fig. 3

Mean estimate distance from road to plot (Euclidean distance from the closest road was calculated for each pixel of 1 km by 1 km)

Optimization of sample size and plot configuration

While there are linear, nonlinear and integer programming algorithms and software to do optimizations, these models do not accommodate well a mixture of models and integer and continuous design variables. The FRIED tool (Scott 1993) optimizes the process to select efficient plot configurations and sample sizes by minimizing the total inventory cost subject to fixed precision requirements (confidence interval and confidence limit) for key metrics (tree resource indicators) of interest. Since the target plot-related total costs were USD 2 million, adjustments were made as needed to the precision requirements. Combinations of plot configurations were formed by the number of subplot locations (m), the average pairwise distance (d) between subplot centres based on number, distance and spatial arrangement, such as L-shape or radiating from a single centre subplot location, the small tree subplot size (z_S) and the large tree subplot size (z_L). For each combination, the coefficient of variation (CV) was predicted for three key metrics (biomass, volume and number of trees). CV models were developed for three different land types, and two concentric plots designs for sampling small trees vs. large trees using data from previous forest inventories (FD, FAO, 2007; Donato and Iqbal. 2011) using Eq. (1):

$$ {CV}_i={b}_0{m}^{b_1}{\left(d+1\right)}^{b_2}{z}_S^{b_3}{z}_L^{b_4} $$

(1)

The sample size, n, for each metric i is estimated using Eq. (2).

$$ n\ge \max \left[{\left(\frac{t\ {CV}_i\left(m,d,{z}_S,{z}_L\right)}{{\mathrm{Error}}_i\%}\right)}^2\right] $$

(2)

where, n > 2; n is the minimum required sample size across all metrics; Error_i% is the confidence interval half width for the key metric i, e.g., ±5%; t is the Student’s t-value based on the desired confidence level, e.g., 90%; CV_i is the percent coefficient of variation for key metric i predicted using Eq. 1.

The optimization was performed by doing a grid search of different combinations of the plot configuration parameter (m, d, z_s and z_L) values, then evaluating the required sample size using Eq. 2, then estimating the cost of each combination to find the one which minimises cost.

The ultimate requirements are at the national level so the Neyman allocation (Cochran 1977) was used considering weights estimated as the proportion of the total area and variance in each zone using Eq. 3, so the larger and more variable zones were allocated more plots .

$$ {n}_h=n\frac{N_h{S}_h}{\sum {N}_h{S}_h}=n\frac{N_h{\overline{x}}_h{CV}_h}{\sum {N}_h{\overline{x}}_h{CV}_h} $$

(3)

where, n_h is the sample size in stratum (zone) h; N_h is the area of stratum h; S_h is the standard deviation of the metric in stratum h; CV_h is the coefficient of variation of the metric in stratum h; and ${\overline{x}}_h$ is the mean of the metric in stratum h.

Using the plot configuration parameters and the sample sizes by stratum, the total costs could be estimated. This process was repeated for thousands of different combinations until no further reduction in cost was found.

Plot configuration

Based on data from previous inventories and results after many iterations, the preferred plot configuration has 3 or 5 subplot locations, 38 m apart in cardinal directions (bearings 0, 90, 180 and 270 degrees). At each subplot location three concentric circular subplots are observed for trees, each with a different radius (19, 8 and 2.5 m) corresponding to different tree diameter thresholds (≥ 30 cm DBH, DBH ≥ 10 cm to < 30 cm, DBH ≥ 2 cm to < 10 cm) for all zones. The smallest subplot for regeneration is offset 5 m to the east to avoid trampling. Four down woody transects and a soil sample are observed at each subplot location as well (Fig. 4). Here, the plot refers to having five subplot locations (each with three subplots) in the Sal, Village, Hill and Coastal areas or three subplot locations for the Sundarban area. The adjustment to three subplot locations in the Sundarban area was made to ensure that field data collection could be carried out in a single day due to the complicated logistical arrangement to reach each parcel in these remote areas (Fig. 4b).

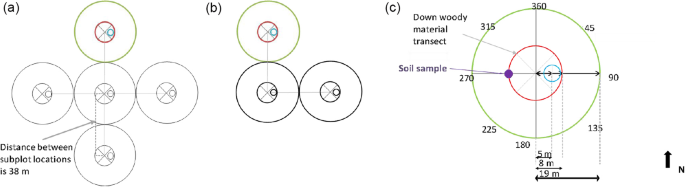

Fig. 4

Plot and subplot configurations (a) Sal, Hill, Village and Coastal zones, (b) Sundarban zone and (c) subplots. The number of subplot locations in the Sundarban zone was limited to three to ensure plot measurements to be completed within one day

Plot selection

As mentioned, the BFI uses stratified random sampling with zones serving as strata, using quasi-systematic sampling within strata, and the strata sample sizes were selected using Neyman allocation to maximize the precision across strata (FD 2016b). To determine the plot locations, a hexagonal grid reflecting the desired stratum sample size was constructed as the sampling frame, such that the hexagon area was the stratum area divided by the stratum sample size. One plot from the grid was randomly selected in each hexagonal grid cell (Fig. 5). If the selected location fell outside the stratum, then no plot in that zone was selected for that hexagon which helped ensure that the desired sample size was achieved (forcing one in each hexagon would not). Accordingly, the number of expected plots to be visited in each stratum was obtained (Table 1).

Fig. 5

Selection of plots by hexagonal grid in the Sundarban zone (a) random selection of plot location for each hexagon (including outside the boundaries) and (b) selected plot locations within the zone

Table 1 Number of expected and visited plots and subplot and sampling intensity by zone

Data collection

The land feature related information, i.e. land cover, canopy cover, vegetation type, crown density, was collected at the plot level. At the subplot level, data for tree measurements (live and dead), down woody material, litter, and soil samples were collected. All live and dead standing trees and stumps ≥ 30 cm DBH were measured within the largest subplot; all live and dead standing trees and stumps with DBH ≥ 10 cm to < 30 cm and bamboo clumps were measured in the intermediate subplot; all live, dead saplings and stumps with DBH ≥ 2 cm to < 10 cm of two non-tree species (Nypa fruticans and Cerops decandra) and all tree seedlings for regeneration estimation (DBH < 2 cm) were measured in the smallest subplot. Down Woody Material was measured on four transects per subplot location, each transect starting at the subplot centre and extending 8 m at 45°, 135°, 225° and 315°. Small (< 1 cm), medium (1–3 cm) and large (3–8 cm) pieces were counted and the diameters of coarse pieces intercepting the transect were measured. Litter (collected within 1-m² frame) and soil samples (at 0–15 cm and 15–30 cm soil depths in all zones and 30–100 cm soil depth in the Sundarban zone) were collected in the three subplot locations at eight meters and 270° from the subplot centre. Laboratory analyses were conducted to measure litter carbon content, the soil bulk density and organic carbon content (by loss on ignition method). Moreover, additional information was collected at the plot and subplot level such as land management, ownership, disturbances. Detailed information about the data collection process is provided in the field inventory protocol (FD 2017a).

The socio-economic design

Sampling framework

The socio-economic survey used stratified sampling with two-stage sampling within strata (GoB 2017c). The strata were defined first by the five zones of the socio-economic component and were identical to the biophysical component except for the Sundarban zone where no people live (Fig. 6). Each stratum was subdivided into four sub-strata, that were defined by classifying all unions within each stratum into quartiles of the variable Household Tree Availability, which is estimated as percent tree cover per household (%TC∙HH^− 1) using Eq. 4. The definition of sub-strata was based on the assumption that tree and forest ecosystem services to households is related to tree cover per household, which is a proxy for the quantity of tree and forest resources available. Thus, the total number of sub-strata is 20 (4 classes within 5 zones). To have an equal distribution of unions (primary sampling units) in each sub-stratum, 16 unions were randomly sampled from each sub-stratum, which results in 64 unions selected in each stratum and 320 at the national level (GoB 2017c). Within each selected union, a random sample of 20 households was selected for interview as the secondary sampling units.

$$ \mathrm{Household}\kern0.5em \mathrm{Tree}\kern0.5em \mathrm{Availability}=\frac{\left(\frac{\mathrm{TC}\;\mathrm{area}}{\mathrm{Union}\kern0.17em \mathrm{area}}\right)}{\mathrm{Number}\;\mathrm{HH}\hbox{'}\mathrm{s}}=\frac{\% TC}{HH} $$

(4)

Fig. 6

Zoning used in the socio-economic component. The Sundarban periphery zone was defined by all unions within a 10 km buffer area (assumed to be where most of the forest dependent people live) around the boundary of the Sundarban zone which corresponds to the white area on the map (where no people live)

where, TC is the tree cover estimated from remotely sensed Landsat data from 2014 (Potapov et al. 2017), and HH is the number of households from the ‘Population and Household Census - 2011’ dataset (BBS 2015).

Sampling design

The estimation of the optimal sample size in complex surveys, such as the present one, is not a trivial exercise. When information on more than one item must be collected, it is necessary to focus on the item which is considered as the most relevant to the survey. One of the most relevant outcomes of the survey is the number of people depending on forest resources in each zone (stratum). Each substratum is designed to be homogeneous based on the variable (tree cover/number of households/area) considered and the number of unions selected was equal in each substratum.

Sample size

The sample size was calculated for each zone using Eq. 5 (Cochran 1977) considering an uncertainty in the number of forest-dependent people of ±5% (at a 95% confidence level) for each zone.

$$ {n}_0=\frac{t^2 pq}{e^2} $$

(5)

where, n₀ = the sample size; p the estimated proportion of an attribute that is present in the population; and q is 1–p and e the margin of error to be attained (here ±0.05). Setting the value of p to 0.5 results in the largest variance for a proportion, thus yielding a large (conservative) sample size. By using Eq. 5, the resulting sample size was 384. That assumes a simple random sample of households. The sample size was increased by 10% to compensate for non-response. In addition, the design effect to account for clustering of households within unions was chosen as 3 which was a conservative choice. The total number of households to be surveyed in each zone was 1268 (384 × 3 × 1.1), which corresponds to a total of 6340 (1268 × 5) and 0.02% of households at a national level.

Sample selection

Because a list of enumeration areas from the agricultural census was not available and the agricultural census does not provide information related to tree and forest dependency, households were selected within the selected unions (Fig. 7) by randomly generating five GPS points within the “rural settlement” and “built-up areas” land cover classes of the 2015 national land cover map. Interviewers then navigated to the five GPS points and chose the nearest four households to interview so that 20 households were visited in each union. A total of 6400 households from 320 unions were surveyed (20 substrata × 16 unions × 20 households = 6400 total households). Of the respondents, 53% were female and 47% were male. The 2015 land cover map was used by enumerators to ask respondents from which land cover certain primary products were collected (FD 2017a).

Fig. 7

Spatial distribution of selected unions representing different household tree availability classes across the zones for socioeconomic survey

Socio-economic survey

A structured questionnaire was prepared considering the identified criteria and indicators, an optimal size of the questionnaire, and identifying target groups for the Focus Group Discussions (FGDs). The questionnaire was tested to ensure that the questions were clear and then used for interviewing the selected households (Rahman and Jashimuddin 2017).

Focus group discussions

In addition to the household survey, one hundred FGDs were carried out across the whole country (20 in each zone) involving important stakeholders (e.g., forest resource users) that were identified from the household survey to collect information related to trends of land use, access to services, tree and forest products prices based on market value and benefits from tree and forest resources.

The national land cover map

A national land cover representation system (NLRS) for Bangladesh (GoB 2017d) using the Land Cover Classification System (Di Gregorio and Leonardi 2016) and following the Land Cover Meta Language (LCML) ISO 19144 (ISO 2012) was prepared as the result of several processes of data collection, translation, gap identification and analysis of existing land cover/use mapping processes.

The legends of three existing national land cover/use maps were collected, documented and translated using the Land Cover Classification System (LCCS v3) – an implementation tool of ISO standard (ISO 19144-2) LCML (Di Gregorio and Leonardi 2016). This step identified the gaps in existing legends and assisted the interpretation of land feature classes considering the objectives of the institutions responsible for land cover map development. In parallel, field data were collected, using Open Foris Collect (Costello and Piazza 2015), from 1144 locations across the country to characterize the classes of the NLRS (BSGI FD, 2016).

From the NLRS, the initial legend classes for land cover map 2015 were derived during a national workshop with experts from different organizations working in relevant fields (Udita et al. 2016). These initial classes were further refined during map development process to develop the final legend. Some of the classes were extended from the NLRS (e.g., bamboo forest, rubber plantation, etc.), while some other classes were merged (e.g., short and long rotation plantation into forest plantation) when differences among these classes were not discernible from the available satellite images by visual interpretation. The final land cover map has 33 classes.

For the development of land cover map 2015 (Fig. 8), multi-spectral ortho (Level 3) SPOT6/7 four band images of 6-m spatial resolution with maximum 10% cloud coverage were primarily used for the whole country. An Object-Based Image Analysis approach (i.e., multi resolution segmentation algorithm (Baatz and Schäpe 2000)) was adopted to create image objects using the green, red and near-infrared bands of SPOT imagery. Meaningful image segments (Castilla and Hay 2008) were directly assigned with land cover code by visual interpretation. Image segments not corresponding well to geo-objects were manually edited (i.e., manual digitization by visual interpretation of satellite image) before assigning an appropriate land cover code. Seasonal variations in land and water features are common in Bangladesh. Landsat 8 and Sentinel 2 images from different seasons were taken into consideration in visually interpreting areas having a seasonal variation (especially agricultural classes).

Fig. 8

National wall-to-wall land cover map 2015 with overall accuracy of 89%

Quality checking was an integral part of the whole production chain and was completed using multiple approaches including a spatial topology check, an attribute check, a consistency check, expert judgment and field validation. The accuracy assessment analysis of the land cover map was performed through visual interpretation of fine resolution imagery (pseudo-ground truth validation technique), with stratified random sampling by district and by land cover class. The most commonly used measures of accuracy (i.e., overall accuracy, user’s accuracy, producer’s accuracy) were estimated following the approach suggested in Olofsson et al. (2013) and presented in Jalal et al. (2019). The overall accuracy, through visual interpretation, was estimated at 89%. User’s accuracy ranged from 20% to 99% while producer’s accuracy ranged from 13% to 100%. The detailed methodological process and results (including the accuracy, uncertainty and adjusted area estimates) of land cover 2015 are presented in Jalal et al. (2019).

Operationalization

In total, 51 trainings, 10 workshops, and 14 consultations involving 1206 people were conducted to provide all technical expertise to the different teams for the biophysical, socio-economic and remote sensing components of the BFI. The three components were planned to be implemented within a four-year period (1 year for enhancing technical capacity, 2 years for the field data collection and 1 year for data analysis and sharing the results). The field data collection was supervised by a Conservator of Forests from the Forest Department, while local Conservators of Forests supervised the field implementation in each district.

Regarding the biophysical component (FD 2016b), one specific working group constituted by the Chief Conservator of Forests was established to oversee its implementation. The measurements on field plots were performed by 13 field inventory teams of seven members. Local people were engaged as much as possible in the composition of the field team or as guides. Local FD staff helped by providing information about access conditions to the plot and recruiting local people with required local knowledge. Field teams were trained using a manual developed by FAO, SilvaCarbon and staff from universities and two research organisations (FD 2017a). Field work preparation involved maps, digital field forms, equipment and other logistics. Quality control was achieved through hot and cold checks on 3% and 7% of the plots respectively by four Quality Assurance and Quality Check (QA/QC) teams composed of FD and the University Faculty members (FD 2016c).

The data were collected in the field using the Open Foris Collect Mobile app (FAO 2018a) installed on tablets. The data were exported to an online data repository as ‘.collect-data’ files and then imported to the Open Foris desktop version regularly for conversion to other data formats (e.g. .csv, .xml). This ensured a more efficient and cost-effective field data collection and facilitated quick and ready access and validation of the data by Forest Department. Validation rules included data type validation (verifies that the data entered are consistent with the expected primitive data type), range checks (verifies that the entered value falls within an accepted value range), checks for missing records (flags missing data, miscoded data values appearing to be outliers and other issues), and cross checks (whether the data entered in different fields is consistent with other fields based on a set of underlying assumptions). Field data collection concluded by visiting 1781 out of 1858 plots (1480 accessible, 301 partially accessible), or 96% of the total. Of those plots which were not measured at all, 42 were inaccessible plots (2.3%) and 35 were not measured for other reasons (1.9%). In the case of inaccessible plots, a visit was attempted but tree measurements were not possible in any subplot, most commonly due to the plot centre falling inside hazardous conditions such as steep slopes (52%), water (33%), or other reasons such as denied access, restricted areas, or wall or building (15%).

The socio-economic component (GoB 2017c) was overseen by a separate working group from relevant universities, Government and non-government organisations. It was implemented by a contracted entity experienced with socio-economic data collection. The data were collected by five enumerator teams with five members in each team which followed the manual for the socio-economic component (FD 2017b). For verification of household interviews and ensuring consistent field data collection, a quality assurance and quality control (FD 2016c) was conducted in 4% interviewed households (254 hot checks, 13 cold checks).

The preparation of the national land representation system (GoB 2017d) and the land cover map involved 13 national entities. In addition, agreements were signed with other organisations for the preparation of, for example, the land representation system (Soil Resource Development Institute, Bangladesh Society of Geo-Informatics and the Centre for Environmental and Geographic Information Services), allometric models (Khulna University, Bangladesh Forest Research Institute), soil analysis and archiving (Soil Resource Development Institute, Dhaka and Khulna University), the development of the Bangladesh Forest Information System (Bangladesh Computer Council), and the tree species list (Bangladesh National Herbarium). The collected data were documented, archived, and shared with stakeholders through the Bangladesh Forest Information System (FD 2019) and the main results are presented in the upcoming BFI report (GoB, 2019).

Allometric models

A national database of allometric models was prepared to identify gaps and needs for further development (Hossain and Siddique 2016). Among the 517 models, only 189 species-specific models belonging to 35 tree species (including several models for the same species with differences such as sample size, diameter range, author, year) were identified as valid in a country with rich biodiversity which indicates a great dearth of site- and species-specific allometric models (Hossain 2016). Based on this review, new allometric models were developed to fill needs at both species and zone levels through extensive field tree data collection in all five zones (Hossain and Siddique 2016). A decision tree for selecting the most appropriate allometric models was developed (Hossain et al. 2019).

Data analysis

All the estimation procedures of the BFI indicators were documented to ensure transparency, sustainability and future improvement (Hossain et al. 2019). The data collected were archived into a mass storage for backup. MS Access and R-scripts were used for updating the database regularly with predefined queries. For data cleaning and cold checking individual plot reports were prepared as .pdf from MS Access. Data cleaning was done through multiple procedures including within the Open Foris platform, manual cleaning based on the errors identified in the plot report and identifying inconsistencies or outliers through running customized R-scripts.

After data cleaning, customized R-scripts (supplementary information 1) were used for the estimation and are based on the assumptions for stratified random sampling (Hossain et al. 2019). The ratio-to-size sample-based estimator (Thompson 2012; Korhonen and Salmensuu 2014; Scott 2018) combined with stratified random sampling estimators were used to estimate the means, totals and variances for national and zone level statistics using the equations in Table S2.1 (e.g. stem density, basal area, volume, biomass and carbon stock). One of the reasons for choosing the ratio-to-size estimator is because of the ability to include plots which are incompletely measured (i.e. when some subplots within a plot were inaccessible). The estimator was also used for estimating disaggregated statistics based on additional domains as per stakeholder requirements (e.g. land cover, forest / other land, or administrative boundaries).

For estimation of land cover area, the subplot boundaries were overlaid with the land cover map to assign land cover classes and areas within each subplot. The decision to use the land cover information directly from the map avoids possible inconsistency and errors arising from determination of land cover information from field (e.g. land cover boundary delineation within a subplot, number of land covers, etc.). Visual interpretation of fine resolution imagery revealed that the map more consistently characterised the land cover than the field classification approach (Figs. S3.1, S3.2 and S3.3). Differential global positioning system coordinates were available for most of the plots to reduce errors related to the misalignment of the map and subplots.

The wall-to-wall Landsat based tree cover extent and change maps, developed by the Resources Information Management System unit of FD and the University of Maryland (Potapov et al. 2017), have been integrated with land cover 2015 data. At the scale of the polygons of the land cover map 2015, zonal statistics of the 2000–2014 tree cover data were estimated. This resulted in each polygon of the land cover map containing the number of pixels with tree cover in 2000, and the number of pixels with tree cover gains and the number of pixels with tree cover loss for each year between 2000 and 2014. Based on this, tree cover percentage within each land cover class was estimated for 2000 and 2015 (assuming 2014 tree cover), and changes in percentage tree cover were also estimated.

Stratum-specific mean values of carbon density were assigned by land cover classes for the preparation of the map of carbon density (Fig. 9). The carbon density with standard errors by stratum and land cover classes were provided in Table S2.2.

Fig. 9

Spatial distribution of the carbon stock density estimates across the country in 2015 using carbon stock densities available in Table S2.2

Key results

Criterion 1 - trees and forest extent

Forest land cover area derived from the land cover map and the stratified area estimates obtained after the accuracy assessment for 2015 are provided in Table 2. Based on the FRA definition of forest cover (FAO 2018b), forest cover in Bangladesh was 1,884,019 ha, or 12.8% of the total country area. This amounts to 11.7 ha per 1000 people. When only terrestrial land area was considered (i.e. excluding river area), the forest cover was 14.1%. Hill Forest was the largest forest type by area (4.6% of the country area) followed by Shrubs with Scattered Trees (4.2%) and Mangrove Forest (2.7%). Land covered by Permanent Crops accounted for half of the country’s area and although these areas are primarily used for agriculture, they still had a mean tree cover of approximately 7% (GoB 2020b). Nationally, there was a net decrease in tree cover of 3.4% from 2000 to 2015 (GoB 2020b).

Table 2 Land area of forest classes, their proportion of total country area, stratified area estimates and standard error estimates

Criterion 2 - biological diversity and conservation

A total of 392 species was recorded in the biophysical survey with the largest number of species in the Hill zone (primarily Hill Forest) followed by the Village zone (primarily Rural Settlement) (Table 3). The Hill zone is composed mainly of naturally regenerated forest whereas trees in the Village zone are mostly planted and are often fruit trees. Biological diversity in terms of number of tree species per land cover area is richest in the Hill Forest and Rural Settlements, with each of these zones having more than 232 different species. However, 63% of individual trees in the Rural Settlement are introduced species, compared to only 33% in the Hill Forest. The inventory recorded the largest number of tree species in the Hill zone though the basal area was only 29% of the total basal area of Sundarban zone (Table 3 and Table 4). This indicates that the more intense planting activities in the Hill zone may at least be partially responsible for the richer biological diversity. At least two species in the Hill zone were endangered or critically endangered (A. agallocha and A. scaphula) according to the IUCN Red List.

Table 3 Tree and sapling species, families, species richness and threatened species by zone (stratum). The species richness index is calculated based on Margalef (1958)

Table 4 Stand characteristics, volume, biomass and carbon stock estimates by zone (stratum). Standard error (±%) is provided in (). Total carbon stock includes soil organic carbon up to 30 cm

Criterion 3 - Forest growing stock, biomass and carbon

The Sundarban being the zone with the largest densities of stems, basal area, gross volume, biomass and carbon (Table 4). C. decandra, E. agallocha, and H. fomes are the three dominant species in terms of stem density across the country, though they almost exclusively occur in the Sundarban zone. As a single land cover class, Rural Settlements is the largest source of the national growing stock volume contributing 50% of the total growing stock which is 270% larger than the volume in Forest area.

Trees outside forest (i.e. trees in other land), which include rural settlement areas, contained 66% of the total biomass whereas the greatest biomass density occurred in the mangrove forest. One mangrove species (Heritiera fomes), one fruit species (Mangifera indica), and one introduced species (Swietenia mahagoni) make up the top three species by biomass in the country, and 19% of the total biomass. Biomass that is usable as fuelwood (i.e. coarse woody debris, fine woody debris, and litter) was largest in the Hill Forest (3408 tons biomass, or 33% of the total), but substantial amounts were also present in Rural Settlements (2587 tons, or 25%).

The total terrestrial carbon stock (aboveground, belowground, dead wood, litter and soil) was estimated to be 1275.6 million tons. Carbon stock density was largest in the Sundarbans zone compared to other zones, primarily due to its large aboveground, belowground and soil carbon stocks (Fig. 9, Table S2.2). Most of the country’s carbon stock is held in soils to 30-cm depth (80.5%), followed by aboveground (15%), belowground (4%), dead wood (0.5%), and litter (0.1%) biomass.

Criterion 4 - Forest management and ownership

Tree and forest management is being conducted on an estimated 3.1 million ha of land covering 23.2% of the total area. Forest land ownership is still being delineated in Bangladesh. Nonetheless, the BFI is a sample of the total land area and may be used to estimate proportions of ownership types. Almost 9.4% of the total land was owned by the FD, containing 24.5% of the country’s total aboveground carbon stock. Several plantation management types (block, woodlot, coastal, rubber or strip) made up 48% of the managed land, whereas the rest of the managed land was mostly homestead forest, agroforestry, orchards or tea gardens. Most of the households collected their tree and forest products from privately owned lands chiefly for energy (41% of total households), materials (8%), and food (7%).

Criterion 5 - tree and forest disturbances

About 32% of the Forest area experiences natural disturbances, with landslides, erosion, and cyclones as the most common types. In contrast, in trees outside forest, the most common disturbance was waterlogging. Disturbance was also assessed through household interviews, where respondents overwhelmingly identified cyclones and infrastructure development as major disturbance types. When asked more specifically about the reasons for tree cover loss, the respondents mostly identified overharvesting and tree removals for construction.

Criterion 6 - support for sustainable forest management

The socio-economic survey revealed that few respondents (1.3%) received support for sustainable tree and forest management from any organization. Those who reported receiving support, identified support mostly in the form of free seedlings and trainings on tree planting. People usually purchase seedlings and planting materials from a local market; but in some cases, they receive free seedlings from the Forest Department along with other organizations. Nationally, 43% of the households purchased their own seedlings over the past year (2017 to 2018) and spent an average of 1015 BDT (12 USD, 1 USD = 84.36 BDT) per year to purchase seedlings.

Criterion 7 - trees and forest services and livelihoods

The socio-economic survey revealed that trees and forests are a rich source of materials, energy, nutrition, and income for most households. An estimated 64% of the total population was involved in collecting primary tree and forest products. The total estimated value of the primary tree and forest products collected was 3.07% of the 2017–2018 national Gross Domestic Product (GDP) measured in current price. The value of collected products to the household was on average BDT 19518 per year (USD 231.4 per year), mostly contributed in the form of fruit (47%) and energy (40%).

Trees outside forest supply most of the country’s primary tree and forest products. An exception is in the Hill zone, where about 70% of the timber, bamboo, firewood, and leaves, and almost half of the fruit are supplied from Forest areas near the households.

The total value of products used for cooking and heating was 202,927 million BDT per year (USD 2405.5 million per year). The annual value of these products to households in the Hill zone was nearly 400% of the national average value (BDT 24476 v. 6138 HH^− 1∙year^− 1, USD 290 v. 73 HH^− 1∙year^− 1, respectively). The average cost of buying forest products for cooking and heating purposes was BDT 2554 HH^− 1∙year^− 1 (USD 30 HH^− 1∙year^− 1) nationally.

In terms of income, a household in Bangladesh annually earns BDT 9160 (USD 108) from selling primary tree and forest products which contributed to 1.29% of the 2017–2018 national Gross National Income (GNI) measured in current market price. Households belonging to larger income classes earn more from tree and forest products. Nowhere was the total annual income from trees and forests greater than in the Sundarbans periphery zone which stands at BDT 29,275 HH^− 1∙year^− 1 (USD 347 HH^− 1∙year^− 1), or 9% of the total income in that zone, an income earned mainly from selling fishery products (78%).

Discussion

Sustainable forest management is at the core of forest planning and policy, and national forest monitoring provides the science-based information needed to implement and understand the impact of forest management plans (FAO 2017). To cope with increasing information needs and demand for expertise, comprehensive efforts need to be undertaken to strengthen capacities, including establishing a stable institutional setting for forest monitoring. Though the BFI is not yet fully institutionalized, strengthened national institutional partnerships contribute to improved forest monitoring by (1) defining and updating the objectives as stakeholder purposes and national priorities evolve, (2) building sustainability by sharing expertise and contributions, (3) contributing to the robustness of the results and recognition by national entities, (4) collecting field data through local stakeholder consultation particularly in unstable local political contexts, and (5) engaging youth. In addition, mobilising different technical expertise, such as forestry and remote sensing, contributes to its cost-effectiveness, e.g. reducing the cost and time related to data collection and processing.

Strengthened partnerships and stakeholder engagement contributes to increasing interest in the multiple uses of the datasets for planning and monitoring. As an example, the socio-economic and biophysical information about fuelwood demand and supply were used to assess access to wood fuel supply and support land restoration activities in Cox’s Bazar district. The results were also used as baseline information in support of Investment Plans such as for the World Bank Forest Investment Program. In 2018, GoB confirmed its commitment to the plan by seeking an IDA credit of USD 175 million to finance the Sustainable Forests & Livelihoods project. This contributes to the cross-sectoral Country Investment Plan for Environment, Forest and Climate Change (GoB 2017a). It responds to the urgent need to address environmental degradation and to improve the country’s ability to meet the threats posed by climate change.

Common indicators developed through integration of socio-economic and biophysical variables and remote sensing, contributes to better understand drivers of environmental change and the interactions of human society and forest ecosystems. Though integration of natural and social sciences is already being applied (Mousavi and Alireza 2016; Westfall et al. 2018), their integration remains challenging. An enhanced consideration of the tree and forest ecosystem services and related information in the national statistics would contribute to overcoming some of the challenges related to data accessibility, linking area frames and list frames in ecosystem-related socio-economic survey, and the completeness and robustness of the integrated approach of the BFI. The integration between field and remote sensing can improve the robustness of the results of the BFI by (1) improving the classification and proportioning techniques of the land features at plot and subplot level, (2) post-stratifying to improve estimates within zones, (3) integrating remote sensing parameters and field information, and (4) developing programs for monitoring and assessing land and multiple environmental functions (Corona 2010).

Classification of the land features on the ground, using fine-resolution aerial and satellite images, or following a hierarchical object-based approach using LCML (ISO 2012), is not trivial and subject to classification/interpretation errors, particularly for a first NFI cycle. When comparing the classes assigned by field crews with the land cover map and aerial pictures, dissimilarities were as large as 38% (Table S2.3). This can be related to the limited ability of the field crews to distinguish the different land classes in the field particularly when this depends on the size of land feature, land use and vegetation change (i.e., temporal and spatial dynamics) as illustrated in Fig. S3.1. In the south-eastern hill region, because of the lack of ground-based information due to inaccessibility, it was particularly difficult for the land cover mapping to distinguish classes such as shrub, forest and other vegetation forms. In a similar situation, the use of fine-resolution and multi-dated satellite data is recognized to result in better accuracy (Uddin et al. 2015). In the context of the broad ranges of class-specific accuracies of the remote sensing-based land cover map, we note that the reference classes were labelled using a pseudo-ground truth validation technique (Jalal et al. 2019) and were assumed to be correct considering the fact that reference classification error often occurs and may have implications for analysis of accuracy of land cover by remote sensing (Foody 2010). Another approach was tested using object-based classification of the land cover based on the descriptors collected by field crews. However, more data and research are needed to generate reliable results using this approach. Accordingly, the use of the land area estimates from the land cover map was preferred under this process considering it provided consistent wall-to-wall spatially explicit land cover information that could be used for the integration of the socio-economic and biophysical information. However, it is crucial for the next cycle to improve the classification of the land features on the ground by the field crews, the integration of the field and remote sensing information and the use of the accuracy assessment resulting in stratified land area estimates and associated uncertainty. Another option to improve the accuracy of the land area estimates is to use post-stratification within zones, which should be further investigated since it can be applied to permanent ground plots, while stratified random sampling cannot. Hewson et al. (2014) and Westfall et al. (2011) reported that the uncertainty due to post-stratification is only slightly larger than for stratification, particularly when there are at least 10 or more sample plots in each post-stratum. The accurate plot location of the BFI is useful to ensure the plots can be re-assigned unambiguously to remote sensing-based strata (Hewson et al. 2014). In addition, the increasing flow of temporally and spatially correlated multi-source data along with improved statistical approaches can meet the requirements of information about timber production and protection status of forests.

Conclusion

The BFI has provided national and sub-national estimates of key forest indicators for the period 2016 to 2019. Several innovations were introduced to ensure an efficient and repeatable national forest monitoring system that will help Bangladesh meet its natural resource-related targets and goals. The BFI has been established through a collaborative and participatory process in which the main governmental organisations, institutions, academia, research, NGOs and associations involved in tree, forest and natural resources monitoring were involved. This participatory process is crucial for supporting future needs as they arise, including capacity building and evolving national priorities.

Nonetheless, the full potential of the BFI will not be realized, and national needs will not be met, if the process is not supported by an institutionalized framework and regular budget allocation. Only in this way will the BFI be enable to continue enhancing collaboration, sharing data, exchanging information and experience, establishing the required agreements, and enhancing the research and development activities based on identified priorities such as related to SDGs, valuation of ecosystem services, and soil fertility among others. In the meantime, it is critical to disseminate the results and promote its value to society which will provide the support needed to justify a permanent national program.
